Bosons and Fermions

As you saw in class, particles can be divided into two kinds: bosons and fermions. Bosons are particles that can occupy the same quantum state, and fermions are those that cannot occupy the same state. This distinction changes the way we compute the many-particle partition function in terms of the single-particle partition function, which we'll now work out in a toy example.

Recall the standard Boltzmann form of the many-particle partition function (canonical, not grand), \[ Z_N = \frac{Z_1^N}{N!}\,.\] The factor of \(N!\) in the denominator symmetrizes over all the states when the particles are indistinguishable.

However, this factor is just an approximation to the true answer when we consider bosons and fermions. Consider a system with 10 possible states and 2 particles. The particles can either be in the same state or two different states.

You should conclude from the above calculations that the Boltzmann many-particle partition function interpolates between the boson and fermion many-particle partition function.

Let's try a slightly more sophisticated version of this counting. Consider a harmonic oscillator potential with evenly spaced, nondegenerate energy levels, and consider that there are five particles present in this system. For each of the three cases of distinguishable, boson, or fermion particles, we can ask the following questions:

For distinguishable particles or bosons, the ground state is occupied as follows: \[5\ 0\ 0\ 0\ 0\ 0\ \] while for fermions, each particle must occupy a distinct energy level, so the occupation numbers look like: \[1\ 1\ 1\ 1\ 1\ 0\ ,\] where I've drawn the energy levels from left to right in increasing order.

For bosons or distinguishable particles, we simply promote one of the particles to the first excited state, so the occupation numbers are given graphically by \[4\ 1\ 0\ 0\ 0\ 0\ 0\, \] while for fermions they are given by \[1\ 1\ 1\ 1\ 0\ 1\ 0\,.\] Importantly, there are five degenerate states for the case of distinguishable particles. This is because we could have chosen any one of the particles to promote to the first excited state. For bosons, there is only one first excited state because it is meaningless to talk about which boson got promoted. For fermions, there is also only one way that we could have obtained that occupancy configuration because of indistinguishability of the particles.

For all three types of particles, there are two different occupancy numbers that give two units of energy. For distinguishable and bosons, these look like \[4\ 0\ 1\ 0\ 0\ 0\ 0\, \] \[3\ 2\ 0\ 0\ 0\ 0\ 0\, .\] For fermions, they look like \[1\ 1\ 1\ 0\ 1\ 1\ 0\, \] \[1\ 1\ 1\ 1\ 0\ 0\ 1\, .\] Importantly, we can compute the degeneracy of each of these configurations again. For distinguishable particles, there are \({5 \choose 1}\) ways to get the first configuration, and \(5 \choose 2\) ways to get the second, for a total of 15. For bosons and fermions, again, there is only one way to get each of their respective configurations. I'll leave three units of energy as an exercise.

Quantum statistics and quantum volume

When the number of single-particle states is much larger than the total number of particles, then the distinction between bosons, fermions, or "boltzons" (classical indistinguishable particles) becomes irrelevant; it is simply too unlikely that a significant fraction of particles try to overlap in the same state in this limit, so the distinction is moot. This will be the case whenever \(Z_1 \gg N\), i.e. when the single-particle partition function is large compared to the number of particles.

For an ideal gas, the single particle partition function depends on the particle density and the internal partition function like \[Z_1 = \frac{V Z_{\textrm{int}}}{v_Q}\,,\] where you'll recall that the quantum volume is given by \[v_Q = \biggl(\frac{h^2}{2\pi mkT}\biggr)^{3/2}\,.\] Therefore, the transition between classical statistics and quantum statistics takes place when the density of particles is high enough that their quantum volume becomes comparable to the actual physical volume occupied per particle, weighted by the number of interal states.

h = 6.63e-34; % J s
k = 1.38e-23; % J/K
P = 1.013e5; % 1 atm in Pa
c = 1.66e-27; % kg per amu
mN = 2*14*c; % mass of N_2 in kg

vQ = @(T) (h^2 ./ (2*pi*mN*k*T)).^(3/2); % quantum volume
VonN = @(T) k*T/P; % density of an ideal gas

ratio = @(T) VonN(T)./vQ(T);
ezplot(ratio,[0,2]);

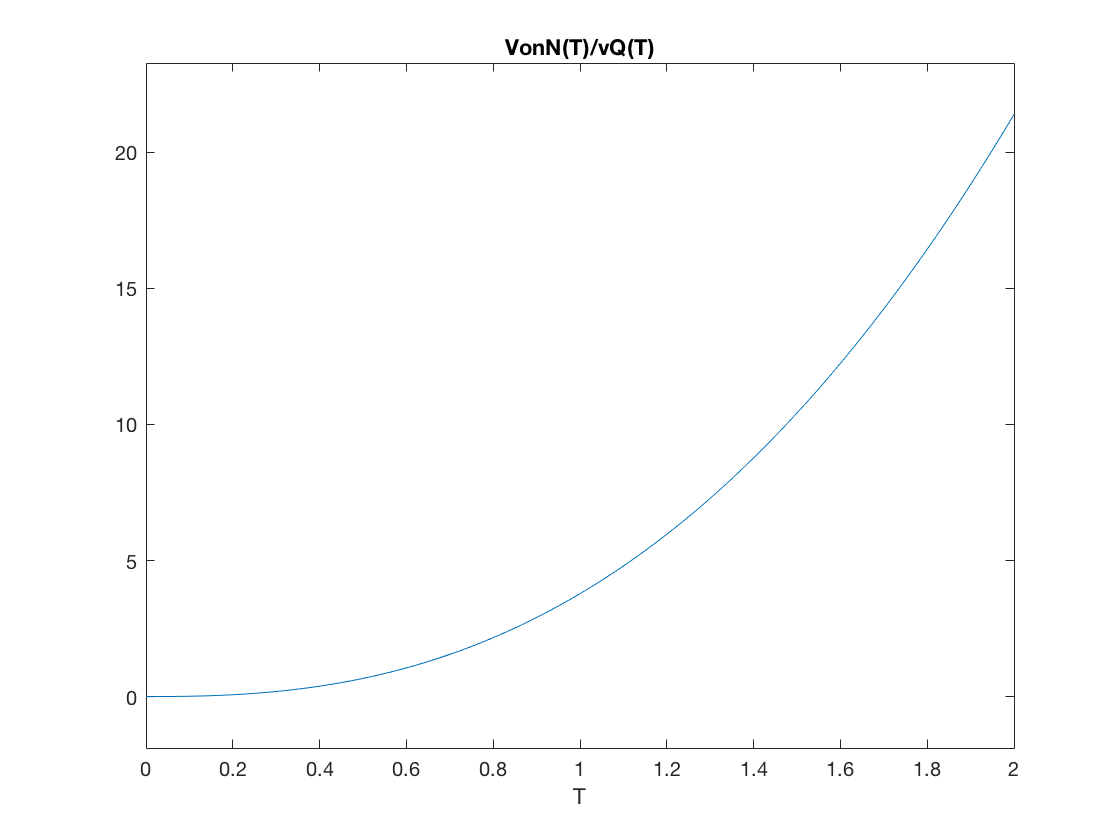

As we cool this system at constant pressure, eventually the density gets so large that the physical volume per particle is comparable to the quantum volume, and that is when we expect Boltzmann statistics to breakdown and quantum statistics to become important. From the graph, our rough estimate of this transition point is about .6 K. Note that this rough estimate neglects the contributions from the internal partition function.

Blackbody radiation

Last class, you saw how the spectrum of electromagnetic radiation was distributed in thermal equilibrium. In particular, you considered the EM radiation inside a box with side length \(L\) and looked at the distribution of frequencies when at thermal equilibrium at a temperature \(T\). By assuming that the EM energy was quantized into units of \(hf\), you found that the partition function was \[ Z = \frac{1}{1-\e^{-\beta h f}}\,.\] This implies that the average energy per unit is distributed according to \[ \bar{n}_{\text{Pl}} = \avg{n} = \frac{\avg{E}}{hf} = \frac{1}{\e^{h f/kT}-1}\,,\] which is called the Planck distribution. This is a special case of the Bose-Einstein distribution when the chemical potential is set to zero, which can be regarded as a manifestation of the fact that photons can be either created or destroyed in any number whatsoever.

We can also ask about the total number of photons and the total energy inside the box. To do this, we need to count all of the modes and weigh them accordingly. As a warmup, consider the case of 1D. Here the wavelength of mode m inside the box is given by \[ \lambda_m = \frac{2L}{m}\,,\] and the energy and momentum relations are simply \[ p_m = \frac{hm}{2L} \quad , \quad \eps = hf = \frac{hcm}{2L}\,.\] In 3D, we use the generalization of this rule, and we find that the allowed energies are \[ \eps = \frac{hc}{2L}\sqrt{m_x^2+m_y^2+m_z^2} \,.\] We can simplify this expression to make it look more like the previous one if we adopt the shorthand notation \[ \eps = \frac{hcm}{2L}\quad , \quad m = |\vec{m}|\,.\]

Now the total energy is given by a sum over all modes, namely \[ U = 2 \sum_{m_x,m_y,m_z=1}^\infty \eps \bar{n}_{\text{Pl}}(\eps) = 2 \sum_m \frac{hcm}{2L} \frac{1}{\e^{hcm/2LkT} -1}\,.\] Here the factor of 2 comes from the sum over both polarization degrees of freedom per mode. As you saw with the density of states, we can turn this sum into an integral as follows, \[ U = \int_0^{\infty}\dd m \int_0^{\pi/2} \dd\theta \int_0^{\pi/2} \dd\phi(m^2 \sin \theta) \frac{hcm}{L}\frac{1}{\e^{hcm/2LkT} -1}\] The integral runs only over the positive orthant of the sphere. If we change variables, we can do the simple angular integrals and rewrite the remaining radial integral in terms of the energy as follows \[ U = L^3 \int_0^\infty \dd\eps \frac{8\pi\eps^3/(hc)^3}{\e^{\eps/kT}-1}\,.\] Dividing by the volume on each side, we can rewrite this as \[ \frac{U}{V} = \int_0^\infty u(\eps) \dd\eps \,,\] where now the integrand is the energy density per unit photon energy. That is, \(u\) is the spectrum of the photons. It is worth writing it again separately: \[ u(\eps) =\frac{8\pi}{(hc)^3}\frac{\eps^3}{\e^{\eps/kT}-1}\,.\] By changing variables, we can alternatively think of the spectrum as being a function either of the energy, the frequency, or the wavelength accordingly.

As usual, we can introduce a dimensionless variable \(x\) to help us study this quantity, \[ x = \frac{\eps}{kT}\,,\] and now the energy density becomes \[ \frac{U}{V} = \frac{8\pi(kT)^4}{(hc)^3} \int_0^\infty \dd x\frac{x^3}{\e^{x}-1} = \frac{8\pi^5(kT)^4}{15(hc)^3}\,.\]

The final answer is in the last expression; the evaluation of the integral is not obvious, but is shown in Appendix B of the textbook. However, it is more important to notice two features about this expression. First, the integrand is still proportional to the Planck distribution, hence we can still interpret it as a probability density. That is, the probability of finding a mode with energy between \(x\) and \(x+\dd x\) is proportional to the density. Second, the energy density is proportional to the fourth power of \(kT\).

The high-frequency (short-wavelength) behavior of the spectrum is accurately captured by Wien's law, which predated Planck's derivation of the correct blackbody spectrum. It is just the lowest-order approximation to the blackbody spectrum. You can recover Wien's law in the case that the frequency is large compared to the temperature, in the sense that \(h \nu \gg kT\), and then the \(-1\) in the denominator of Planck's distribution becomes negligible. Similarly, the long wavelength, low energy behavior recovers the Rayleigh-Jeans law for the spectrum, in the opposite limit that \(h \nu \ll kT\). In this limit, one simply Taylor expands the exponential to derive the appropriate approximation.

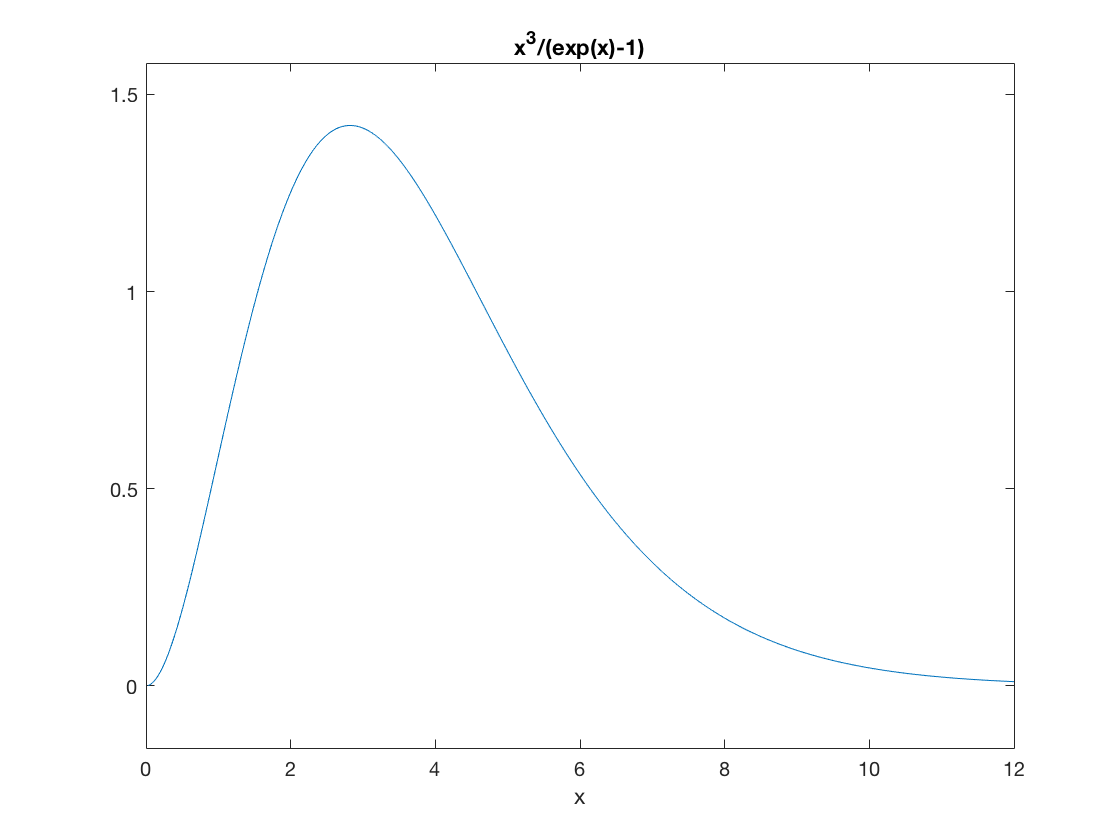

Let's make a plot of the spectrum as a function of photon frequency (or energy), save for the overall factor of \(8\pi/(hc)^3\) which just serves to rescale the vertical axis.

u = @(x) x.^3./(exp(x)-1);
ezplot(u,0,12);

The peak value of this function occurs at \(x = 2.82\), or equivalently \(hf = 2.82 kT\). Thus, if you measure the relative intensity of radiation as a function of frequency for a blackbody and find the maximum, this will tell you the temperature.

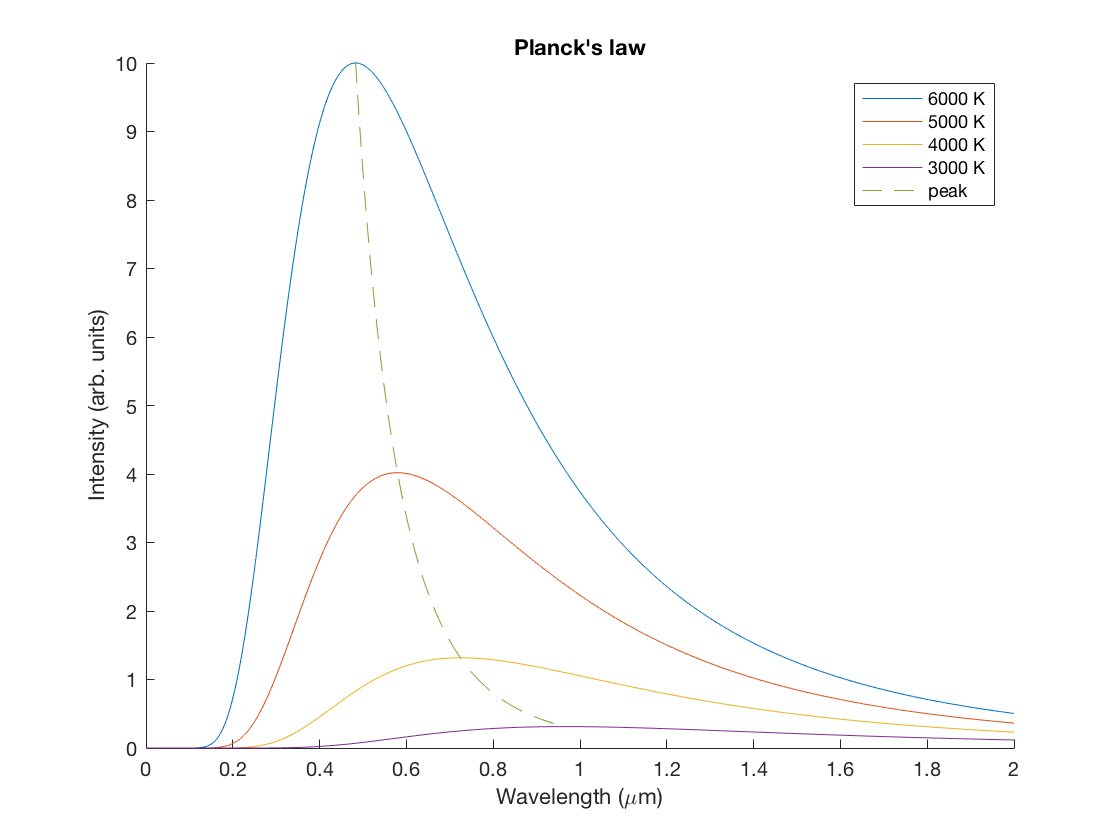

If we add the dimensions back into the plot, then we can see the behavior of the blackbody spectrum as we change the temperature.

The sun is a blackbody and has a surface temperature of about 5800 K.

C = 4.6356*1e-18; % k^4/(hc)^3 in units: J/(m^3 K^4)
T = 5800; % Kelvin
U = 8*pi^5*C*T^4/15 % energy in Joules
U =

    0.8562

Cosmic Background Radiation

Shortly after the Big Bang -- a mere 380,000 years later -- there was a sharp transition in the permeability of light through matter. This is known as the recombination epoch, and it corresponds to the time when the hot dense plasma in the early universe cooled sufficiently to allow the formation of neutral atoms. When this happened, it allowed for photon decoupling, meaning that photons were suddenly free to roam the universe without being repeatedly absorbed and re-emitted by the charged particles in the erstwhile plasma; that is, the mean free path of the photons suddenly increased dramatically. Since that time, the universe has continued to expand, and the the photon gas from the recombination epoch as continued to cool as well. (You can think of this as stretching the wavelengths of the photons; longer wavelengths = lower energies.)

The remnant of this still survives today in the form of the cosmic background radiation. As the universe has expanded about 1000-fold since the recombination epoch, the high-temperature gas of photons has cooled substantially in the more than 13 billion intervening years.

One of the triumphs of 20th century science was the discovery of this background radiation, and it is one of the major pieces of evidence in favor of the Big Bang model of cosmology, at least as important as Hubble's observations of the expanding universe. The original radiation was discovered by accident (!) in the 1960s, but today there are many precise measurements of the spectral density of these background photons.

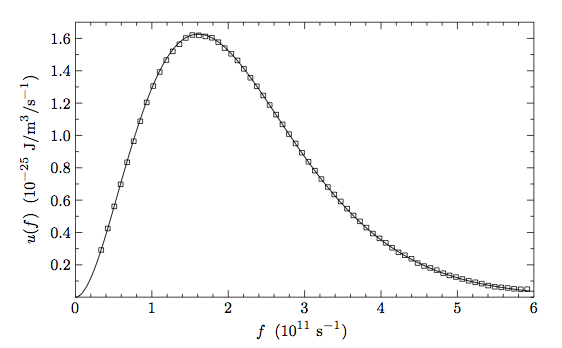

One such measurement was done by the Cosmic Background Explorer (COBE) sattelite. The image below comes from the actual data from this sattelite.

The continuous curve is a Planck distribution at a given temperature. By reading off the data from the graph:
